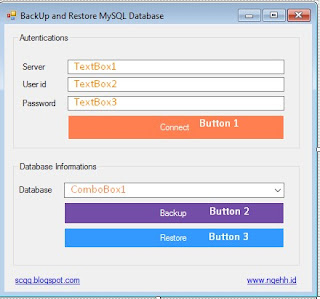

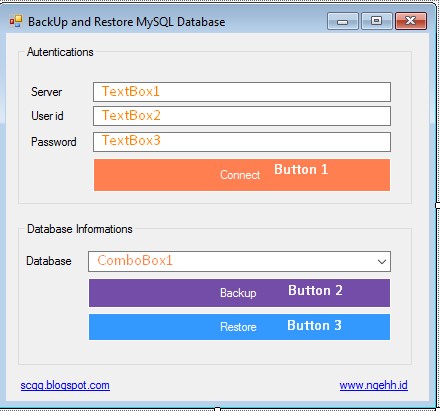

langsung saja buat project baru di Visual studio kamu, saya menggunakan visual studio 2015 pro. buat project baru dengan nama "MySQLTools" dan desain tampilan form1.vb seperti gambar berikut :
Algoritma program :
Ketika user mengisi nama server, user dan password sesuai database server yang dimiliki, maka aplikasi akan mencoba connect dan jika berhasil akan memunculkan daftar list database yang dimiliki ke dalam combobox1, selanjutnya user bisa memilih opsi untuk backup dan restore database yang dipilih sesuai dari combobox text.
langsung saja kita berpusing ria, masuk ke jendela code atau bisa dengan cara klik dua kali pada form1.vb, dan deklarasikan serta import reference yang dibutuhkan. Tambahkan componen OpenFileDialog dan SaveFileDialog ke dalam Project.
Import refernce MySQL.Data
pada menu project > add reference > extensions > MySQL.Data dan OK
Import Namespace kedalam project
Imports MySql.Data.MySqlClient
Imports System.IO
Deklarasikan variable yang dibutuhkan
Dim SqlConnection As MySqlConnection
Dim dt As New DataTable
Dim cmd As String
Dim dtseCt As Integer
Dim da As MySqlDataAdapter
Source Code Koneksi Database
Public Sub koneksi()
Try
SqlConnection = New MySqlConnection("Server=" & TextBox1.Text & "; " _
+ "user id=" & TextBox2.Text & ";" _
+ "password=" & TextBox3.Text & ";")
If SqlConnection.State = ConnectionState.Closed Then
SqlConnection.Open() ' open our connections
End If
Catch ex As Exception
MsgBox("Connection Filed !")
End Try
End Sub
Source Code Tombol Konek (Button1)
Private Sub Button1_Click(sender As Object, e As EventArgs) Handles Button1.Click
Try
koneksi() ' open our connection
' create query to show list of our database into combobox
cmd = "SELECT DISTINCT TABLE_SCHEMA FROM information_schema.TABLES"
da = New MySqlDataAdapter(cmd, SqlConnection)
da.Fill(dt)
dtseCt = 0
' enabling the list of database in the combobox
ComboBox1.Enabled = True
ComboBox1.Items.Clear()
ComboBox1.Items.Add("== Select Database ==")
While dtseCt < dt.Rows.Count
' add database list into combobox
ComboBox1.Items.Add(dt.Rows(dtseCt)(0).ToString())
dtseCt = dtseCt + 1
' lets try
'sorry for it, just add the code like this
End While
ComboBox1.SelectedIndex = 0
Button1.Enabled = False
Button2.Enabled = True
Button3.Enabled = True
'close our connections
SqlConnection.Clone()
dt.Dispose()
da.Dispose()
Catch ex As Exception
MsgBox("Connection Filed!")
End Try
End Sub
Source Code Backup Database MySQL
Private Sub Button2_Click(sender As Object, ByVal e As EventArgs) Handles Button2.Click
' we will backup a mysql database and save it into our local server
Dim DbFile As String
Try
' create svaFileDialog and OpenFileDialog Component to our project
SaveFileDialog1.Filter = "SQL Dump File (*.sql)|*.sql|All files (*.*)|*.*"
SaveFileDialog1.FileName = "Database Backup " + DateTime.Now.ToString("yyyy-MM-dd HH-mm-ss") + ".sql"
If SaveFileDialog1.ShowDialog = DialogResult.OK Then
koneksi() ' open our connections
DbFile = SaveFileDialog1.FileName
Dim BackupProccess As New Process
BackupProccess.StartInfo.FileName = "cmd.exe"
BackupProccess.StartInfo.UseShellExecute = False
BackupProccess.StartInfo.WorkingDirectory = "C:\xampp\mysql\bin\"
BackupProccess.StartInfo.RedirectStandardInput = True
BackupProccess.StartInfo.RedirectStandardOutput = True
BackupProccess.Start()
Dim BackupStream As StreamWriter = BackupProccess.StandardInput
Dim myStreamReader As StreamReader = BackupProccess.StandardOutput
BackupStream.WriteLine("mysqldump --user=" & TextBox2.Text & " _
+ "" --password=" & TextBox3.Text & " -h " & TextBox1.Text & " " _
+ "" & ComboBox1.Text & " > """ + DbFile + """")
BackupStream.Close()
BackupProccess.WaitForExit()
BackupProccess.Close()
SqlConnection.Close()
MsgBox("Backup your MySQL database Created Successfully!", MsgBoxStyle.Information, "Backup MySql Database")
End If
Catch ex As Exception
MsgBox("Nothing to do!")
End Try
End Sub
Source Code Restore Database MySQL
Private Sub Button3_Click(sender As Object, e As EventArgs) Handles Button3.ClickSetelah semuanya beres, tinggal test aplikasi sederhana yang barusan kamu buat, jika tidak terjadi error maka kamu sudah berhasil membuat aplikasi yang berguna untuk membackup database MySQL, kamu bisa kembangkan sendiri nantinya.
' now we will create for restore our database, just copy the source for backup our database before
Dim DbFile As String
Try
' create svaFileDialog and OpenFileDialog Component to our project
OpenFileDialog1.Filter = "SQL Dump File (*.sql)|*.sql|All files (*.*)|*.*"
If OpenFileDialog1.ShowDialog = DialogResult.OK Then
koneksi() ' open our connections
DbFile = OpenFileDialog1.FileName
Dim BackupProccess As New Process
BackupProccess.StartInfo.FileName = "cmd.exe"
BackupProccess.StartInfo.UseShellExecute = False
BackupProccess.StartInfo.WorkingDirectory = "C:\xampp\mysql\bin\"
BackupProccess.StartInfo.RedirectStandardInput = True
BackupProccess.StartInfo.RedirectStandardOutput = True
BackupProccess.Start()
Dim BackupStream As StreamWriter = BackupProccess.StandardInput
Dim myStreamReader As StreamReader = BackupProccess.StandardOutput
BackupStream.WriteLine("mysql --user=" & TextBox2.Text & " --password=" & TextBox3.Text & " -h " & TextBox1.Text & " " & ComboBox1.Text & " < """ + DbFile + """")
BackupStream.Close()
BackupProccess.WaitForExit()
BackupProccess.Close()
SqlConnection.Close()
MsgBox("Restore your MySQL database Successfully!", MsgBoxStyle.Information, "Restore MySql Database")
End If
Catch ex As Exception
MsgBox("Nothing to do!")
End Try
End Sub
jika masih bingung berikut kami menyertakan video tutorialnya silahkan tonton sendiri.
Download aplikasi backup dan restore database MySQL
jangan lupa share, subscribe jika tutorial ini bermanfaat. terima kasih
